Products to digital 3D

Willamette Pattern Nikon Laser Scanner

     So how does it work? The correct terminology is optical CMM (Coordinate Measuring Machine). It utilizes 3 cameras to locate LEDs on the handheld laser scanner. Laser detects object's surface and transmits the data to the computer.

• Application
• Features
• Specification & Requirement
• Case Study

2in Surfing fin case study

Actual product

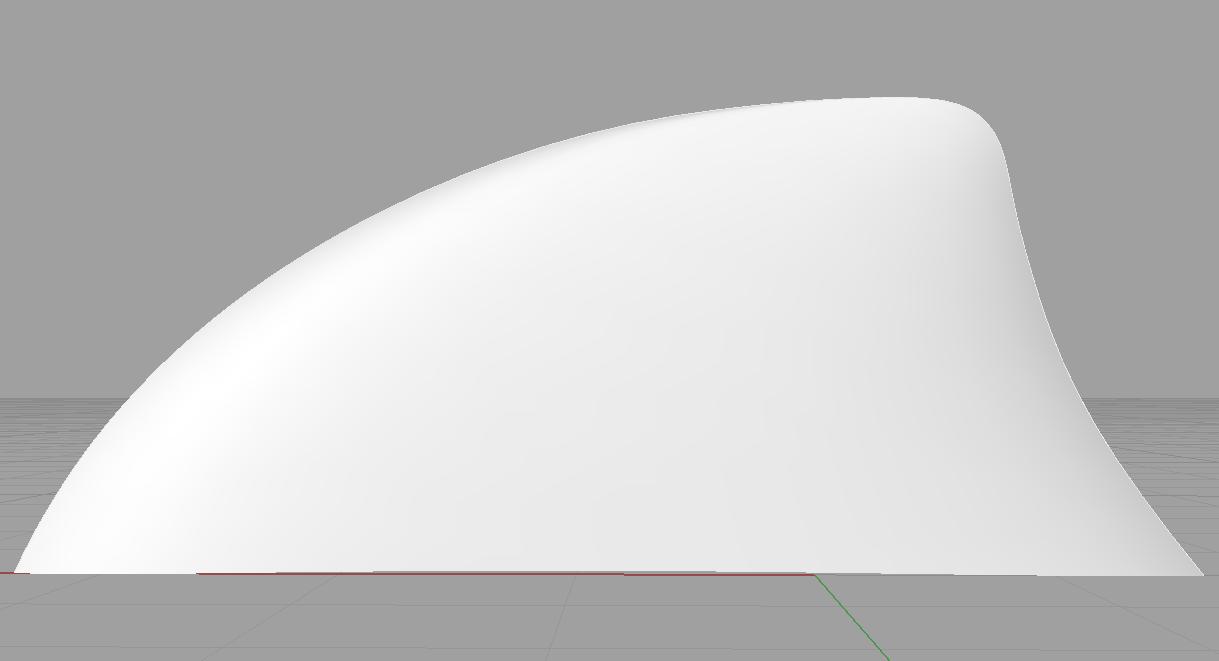

CAD model



Scanned model

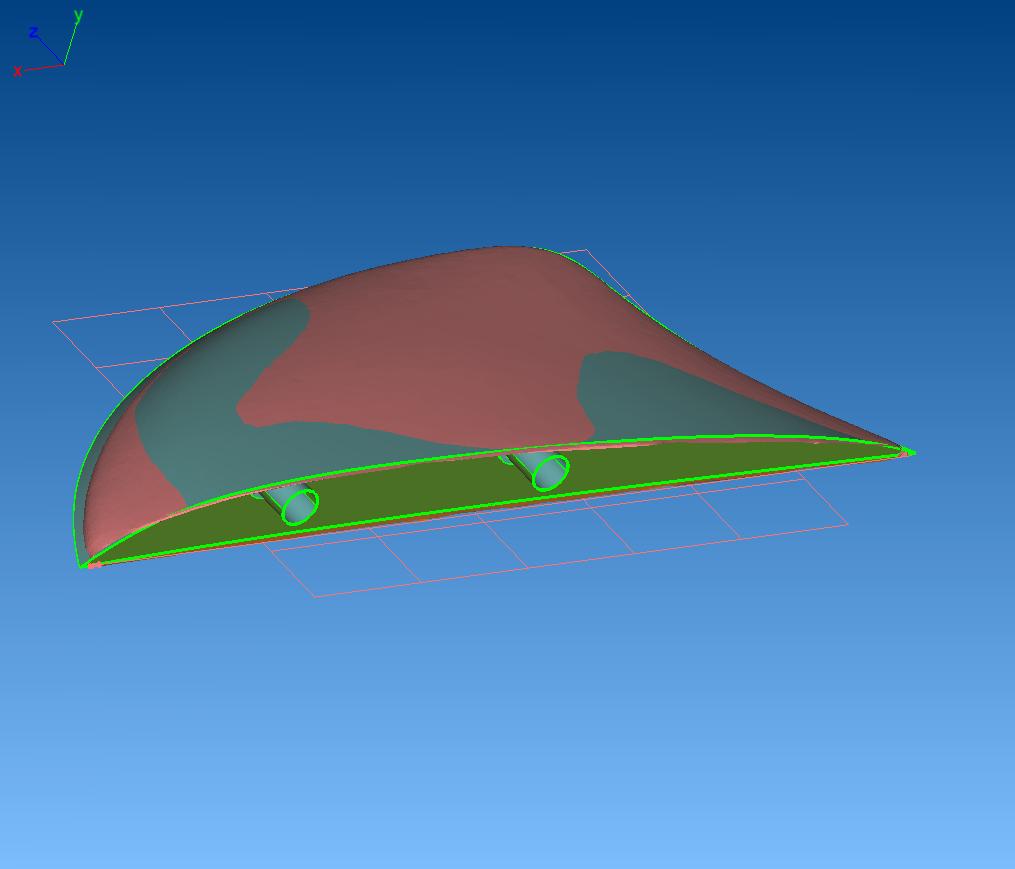

CAD and Scanned model alignment

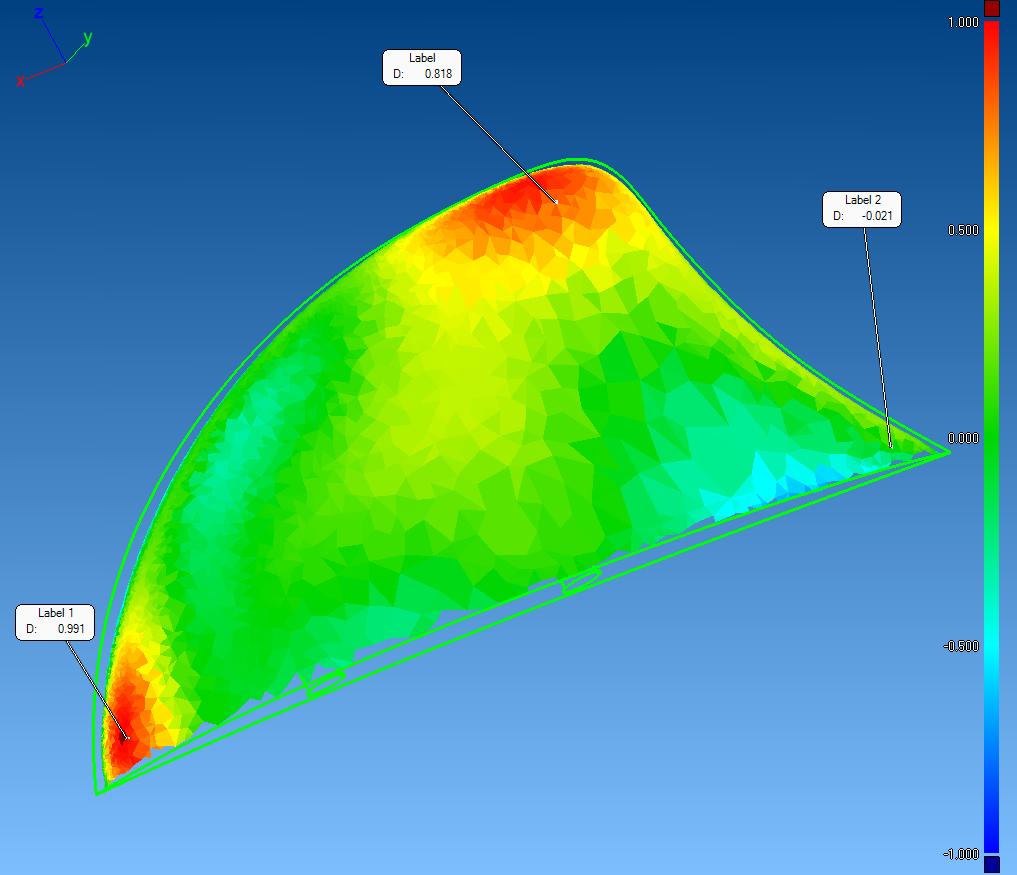

Inspection: Part deviations (mm)
